Schaltschrank

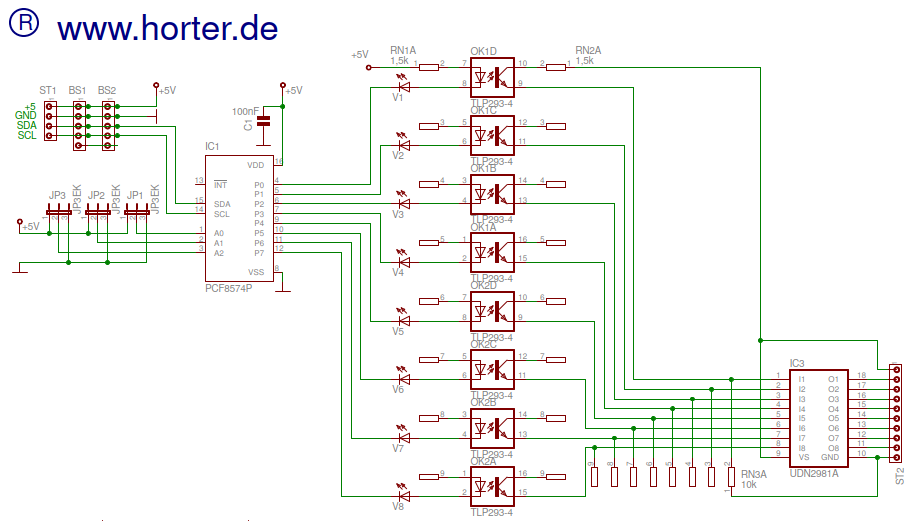

Anschlüsse Relais

Funktion	Nummer	Pin Nr Expander	Expander I2C	Default (Start)
Output 1	1	P0 (Pin 4)	0x20	Off
Output 2	2	P1 (Pin 5)	0x20	Off
Output 3	3	P2 (Pin 6)	0x20	Off
Output 4	4	P3 (Pin 7)	0x20	Off
Licht Oben Terrasse	5	P4 (Pin 9)	0x20	Off
Licht Indirekt Tuer	6	P5 (Pin 10)	0x20	Off
Licht Indirekt Grill	7	P6 (Pin 11)	0x20	Off
Output 8	8	P7 (Pin 12)	0x20	Off
Markise Vorne down	1	P0 (Pin 4)	0x24	Off
Markise Vorne up	2	P1 (Pin 5)	0x24	Off
Markise Oben Raus	3	P2 (Pin 6)	0x24	Off
Markise Oben Rein	4	P3 (Pin 7)	0x24	Off
Bierlift	5	P4 (Pin 9)	0x24	Off
Schuppen Mower	6	P5 (Pin 10)	0x24	On
Schuppen Dose 1	7	P6 (Pin 11)	0x24	On (TBC)
Schuppen Dose 2	8	P7 (Pin 12)	0x24	On (TBC)
